Drawing 1125-BL

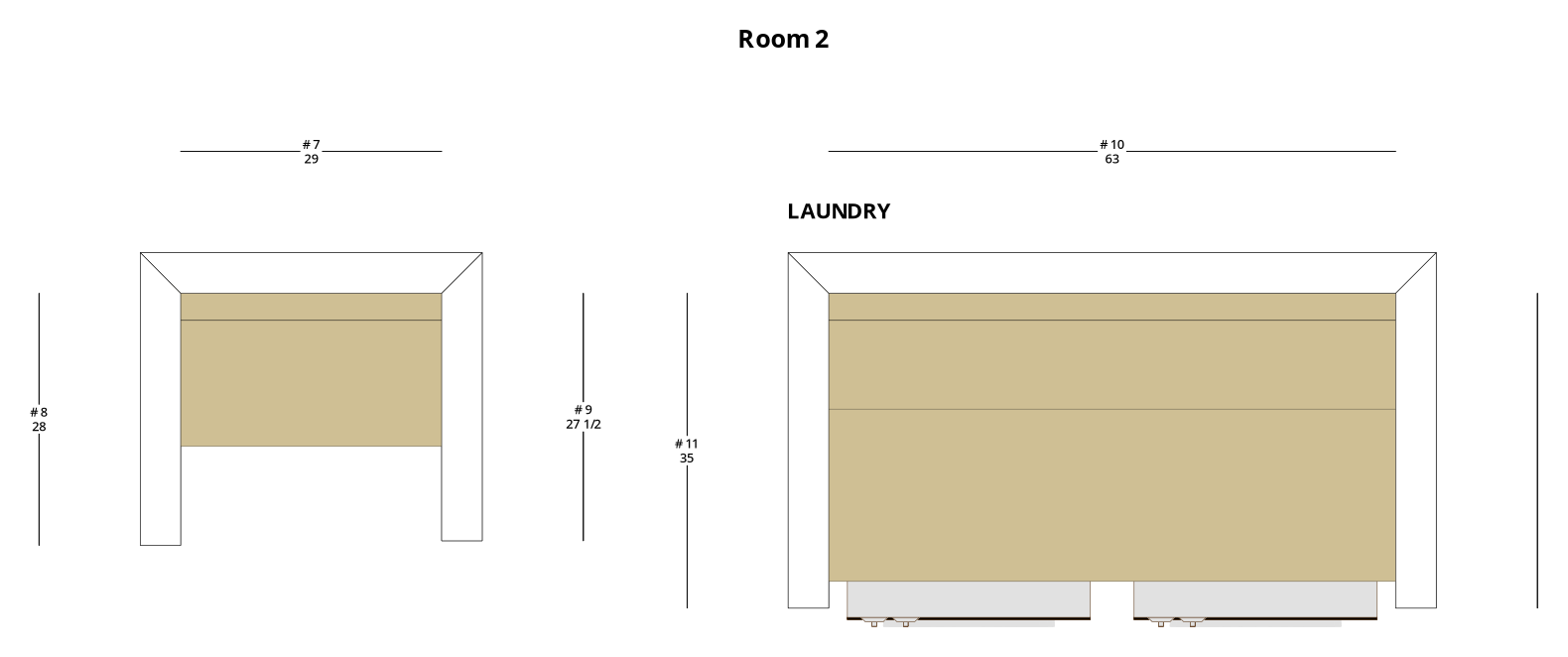

Small Modern Minimalist Bathroom and Laundry Cabinet Layout - PDF Drawing Set | 1125-BL
Bathroom + laundry cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1125-BL
- Room Type
- Bathroom
- Room Size
- Small
- Overall Size
- 7.5 ft x 5.2 ft
- Ceiling Height
- 9 ft ceiling
- Room Area
- 39 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 6 pages
- Wall / Elevations
- 4 elevations
- File Type
- Suitable For
- Bathroom + Laundry renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1125-BL · 6 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1125-BL or draw a new set tailored to your build.
