Drawing 1010-BM
Small Transitional Bathroom and Mudroom Cabinet Layout - PDF Drawing Set | 1010-BM
Bathroom + mudroom cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1010-BM
- Room Type
- Bathroom
- Room Size
- Small
- Overall Size
- 6.2 ft x 4.0 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 25 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 3 pages
- Wall / Elevations
- 2 elevations
- File Type
- Suitable For
- Bathroom + Mudroom renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1010-BM · 3 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

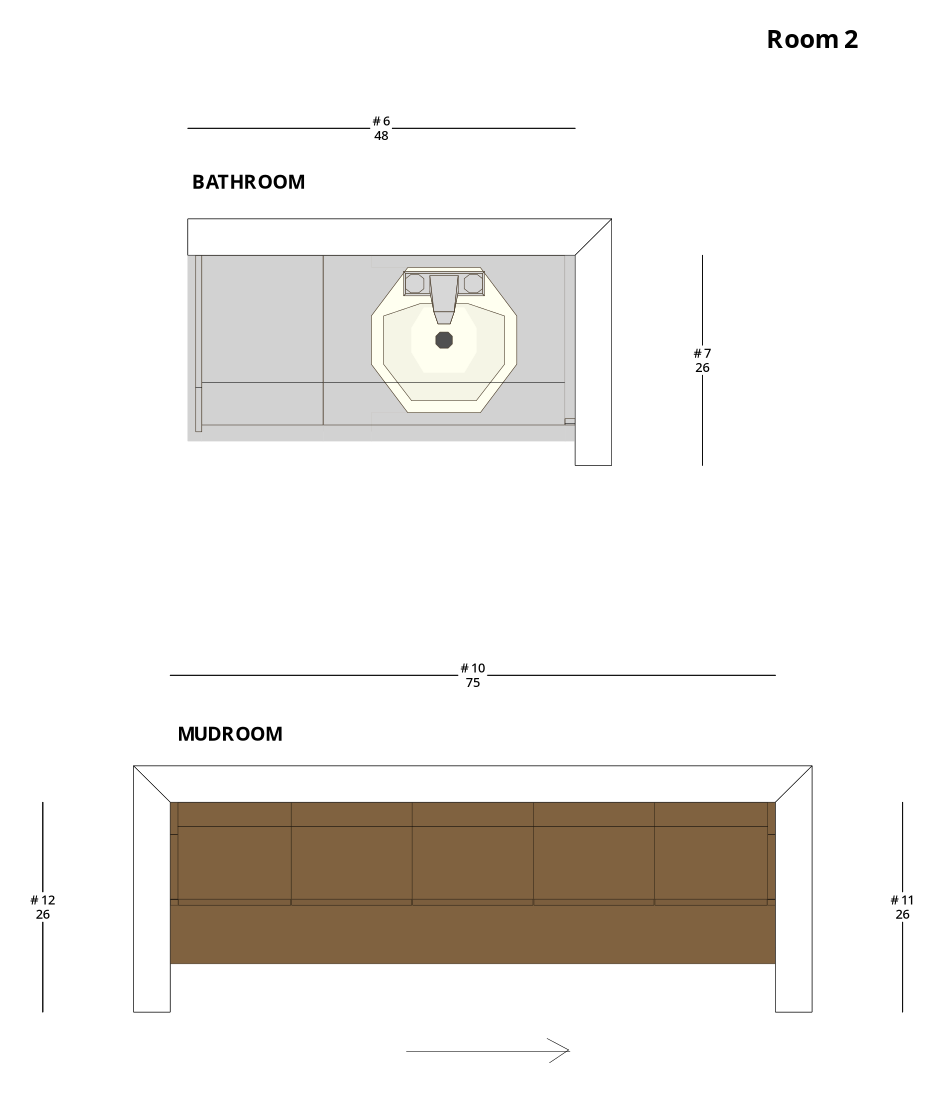

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Specs Cabinet + AccessoriesA-300
- Appliances SpecsA-400
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1010-BM or draw a new set tailored to your build.
