1003-BBathroom · Medium
$99
Drawing 1121-TBD
Medium Transitional Bathroom and Kitchen Cabinet Layout - PDF Drawing Set | 1121-TBD
Bathroom and kitchen cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing details.
Drawing Specifications
- Drawing Code
- 1121-TBD
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 9.0 ft x 8.2 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 74 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 2 pages
- Wall / Elevations
- 1 elevations
- File Type
- Suitable For
- Bathroom and kitchen renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1121-TBD · 2 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

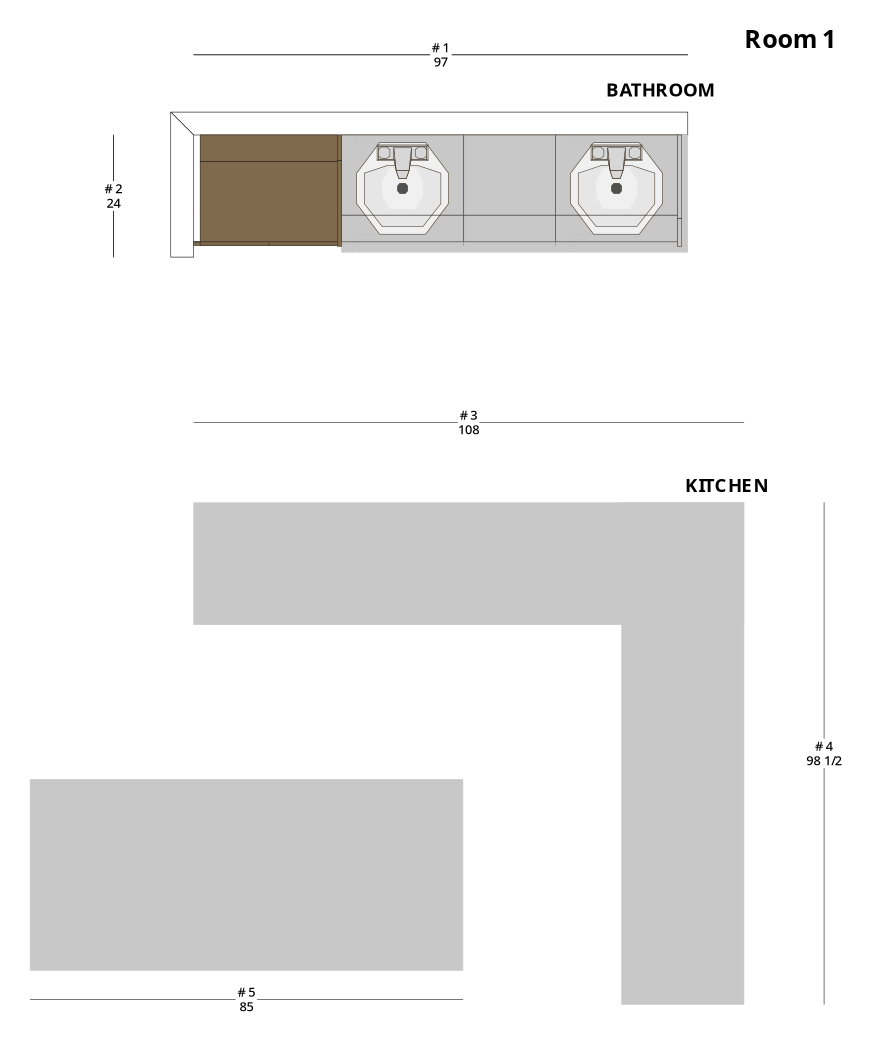

- Plan ViewA-100
- Elevation 1A-200
- Specs Cabinet + AccessoriesA-300
- Appliances SpecsA-400
- Schedule & NotesA-500
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1121-TBD or draw a new set tailored to your build.
