1003-BBathroom · Medium
$99
Drawing 1116-BL
Medium Modern Minimalist Bathroom and Laundry Cabinet Layout - PDF Drawing Set | 1116-BL
Bathroom + laundry cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1116-BL
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 9.6 ft x 8.9 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 85 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 7 pages
- Wall / Elevations
- 5 elevations
- File Type
- Suitable For
- Bathroom + Laundry renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1116-BL · 7 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

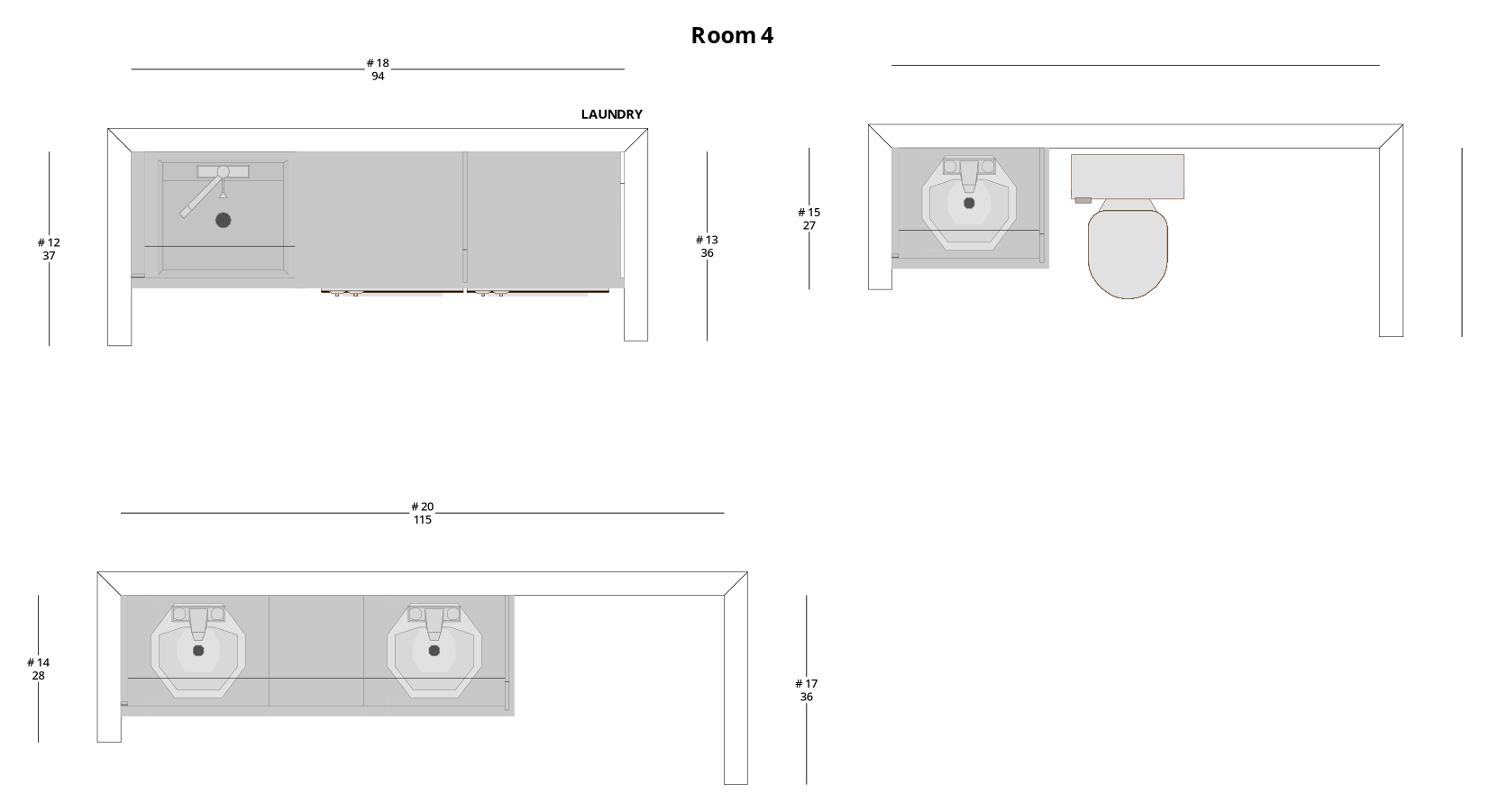

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1116-BL or draw a new set tailored to your build.
Request Custom Drawing →Related Drawings
