Drawing 1113-BM
Medium Modern Minimalist Bathroom and Mudroom Cabinet Layout - PDF Drawing Set | 1113-BM
Bathroom + mudroom cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1113-BM
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 11.5 ft x 9.8 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 113 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 6 pages
- Wall / Elevations
- 4 elevations
- File Type
- Suitable For
- Bathroom + Mudroom renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1113-BM · 6 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

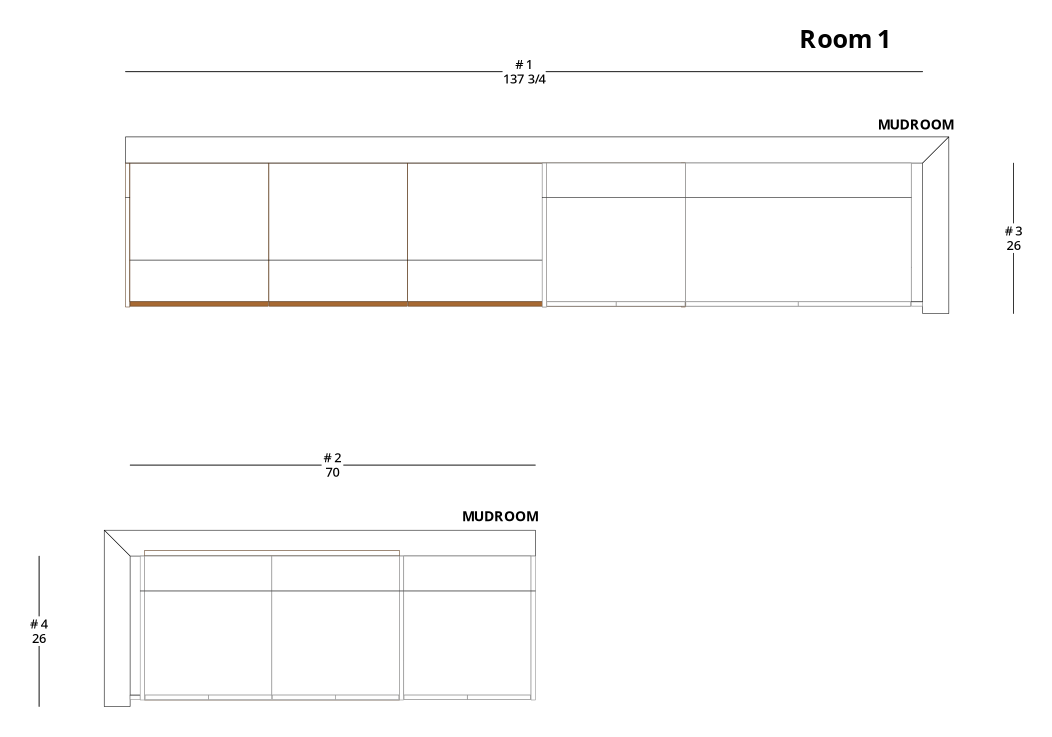

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1113-BM or draw a new set tailored to your build.
Request Custom Drawing →Related Drawings
