1003-BBathroom · Medium
$99
Drawing 1097-B
Medium Modern Minimalist Bathroom Cabinet Layout - PDF Drawing Set | 1097-B
Bathroom cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1097-B
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 11.3 ft x 8.0 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 90 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 5 pages
- Wall / Elevations
- 4 elevations
- File Type
- Suitable For
- Bathroom renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1097-B · 5 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

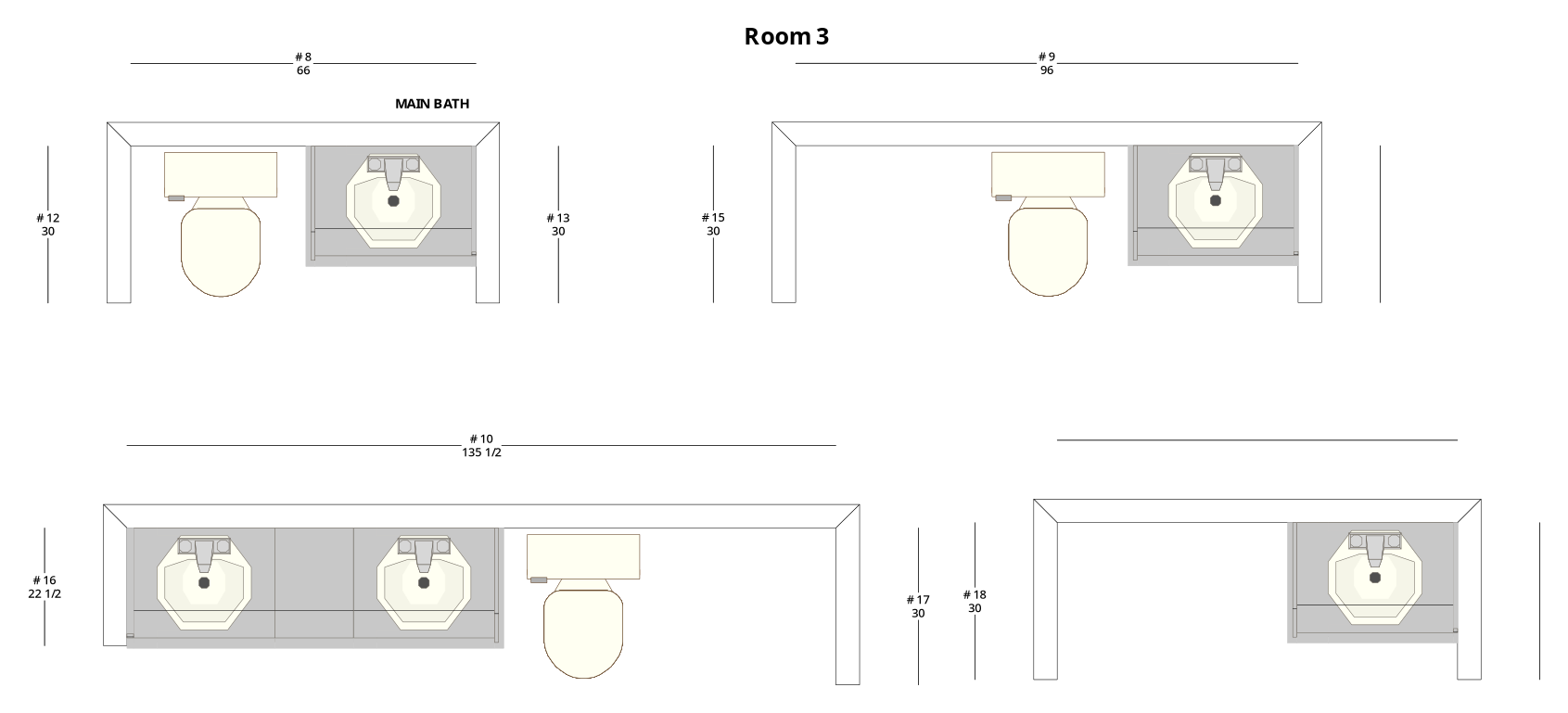

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1097-B or draw a new set tailored to your build.
Request Custom Drawing →Related Drawings
