Drawing 1078-BCT

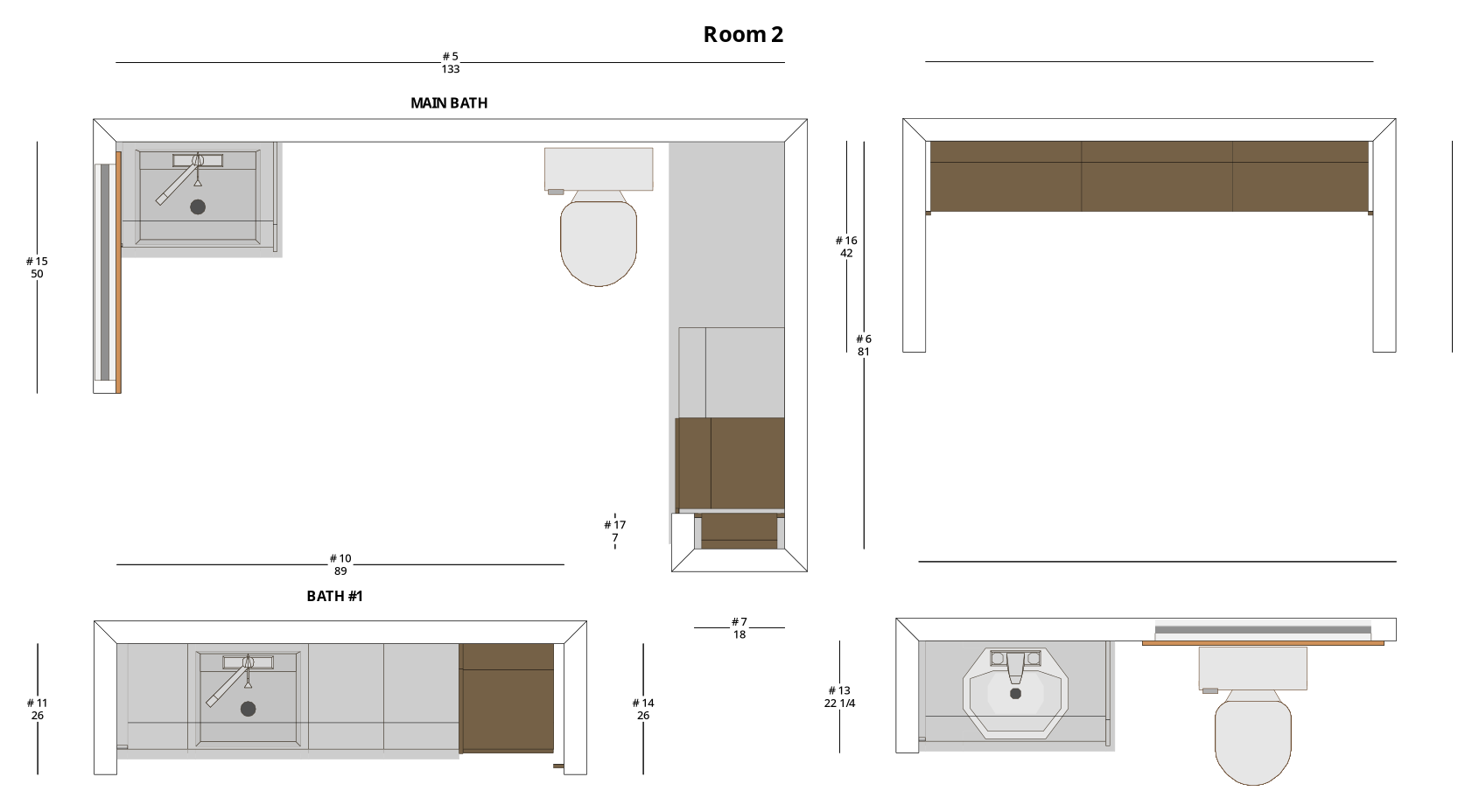

Medium Modern Minimalist Bathroom, Closet, and TV Cabinet Layout - PDF Drawing Set | 1078-BCT
Bathroom + closet + tv cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1078-BCT
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 11.1 ft x 9.0 ft
- Ceiling Height
- 9 ft ceiling
- Room Area
- 100 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 13 pages
- Wall / Elevations
- 11 elevations
- File Type
- Suitable For
- Bathroom + Closet + TV renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1078-BCT · 13 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Elevation 6A-205
- Elevation 7A-206
- Elevation 8A-207
- Elevation 9A-208
- Elevation 10A-209
- Elevation 11A-210
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1078-BCT or draw a new set tailored to your build.
