Drawing 1040-BL
Small Transitional Bathroom and Laundry Cabinet Layout - PDF Drawing Set | 1040-BL
Bathroom + laundry cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1040-BL
- Room Type
- Bathroom
- Room Size
- Small
- Overall Size
- 6.4 ft x 5.8 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 37 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 6 pages
- Wall / Elevations
- 5 elevations
- File Type
- Suitable For
- Bathroom + Laundry renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1040-BL · 6 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

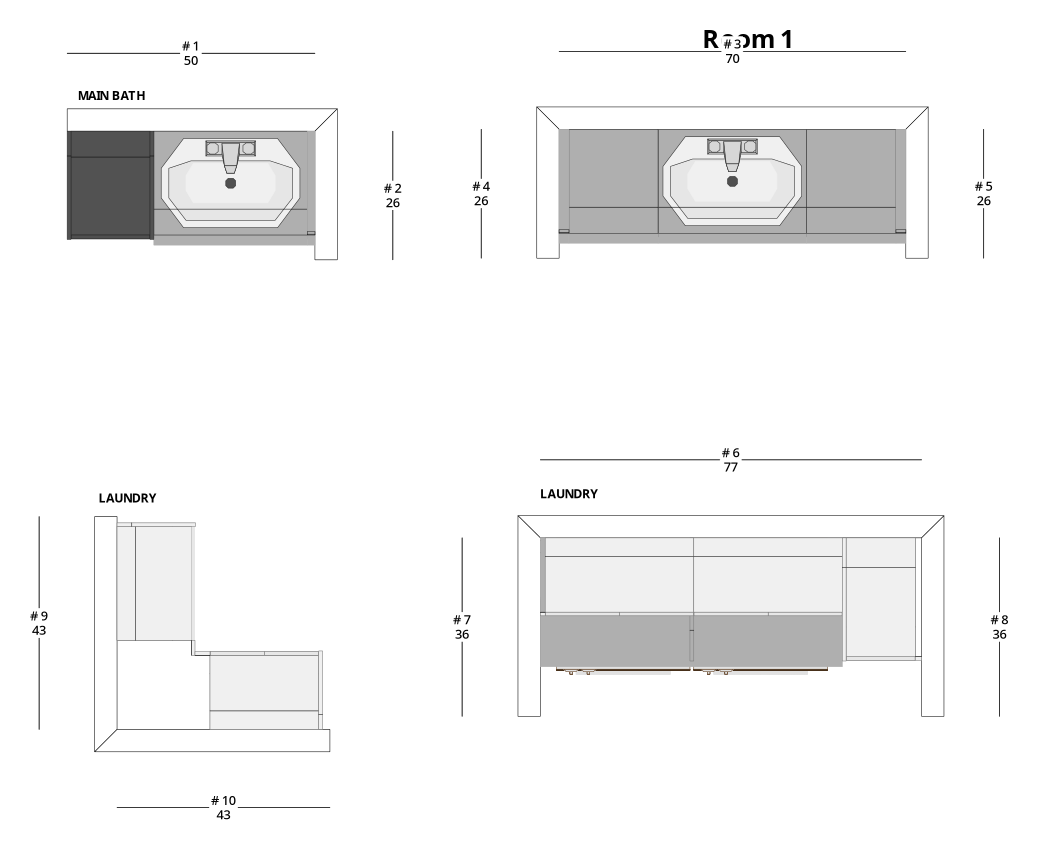

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1040-BL or draw a new set tailored to your build.
Request Custom Drawing →Related Drawings
