Drawing 1019-BCL

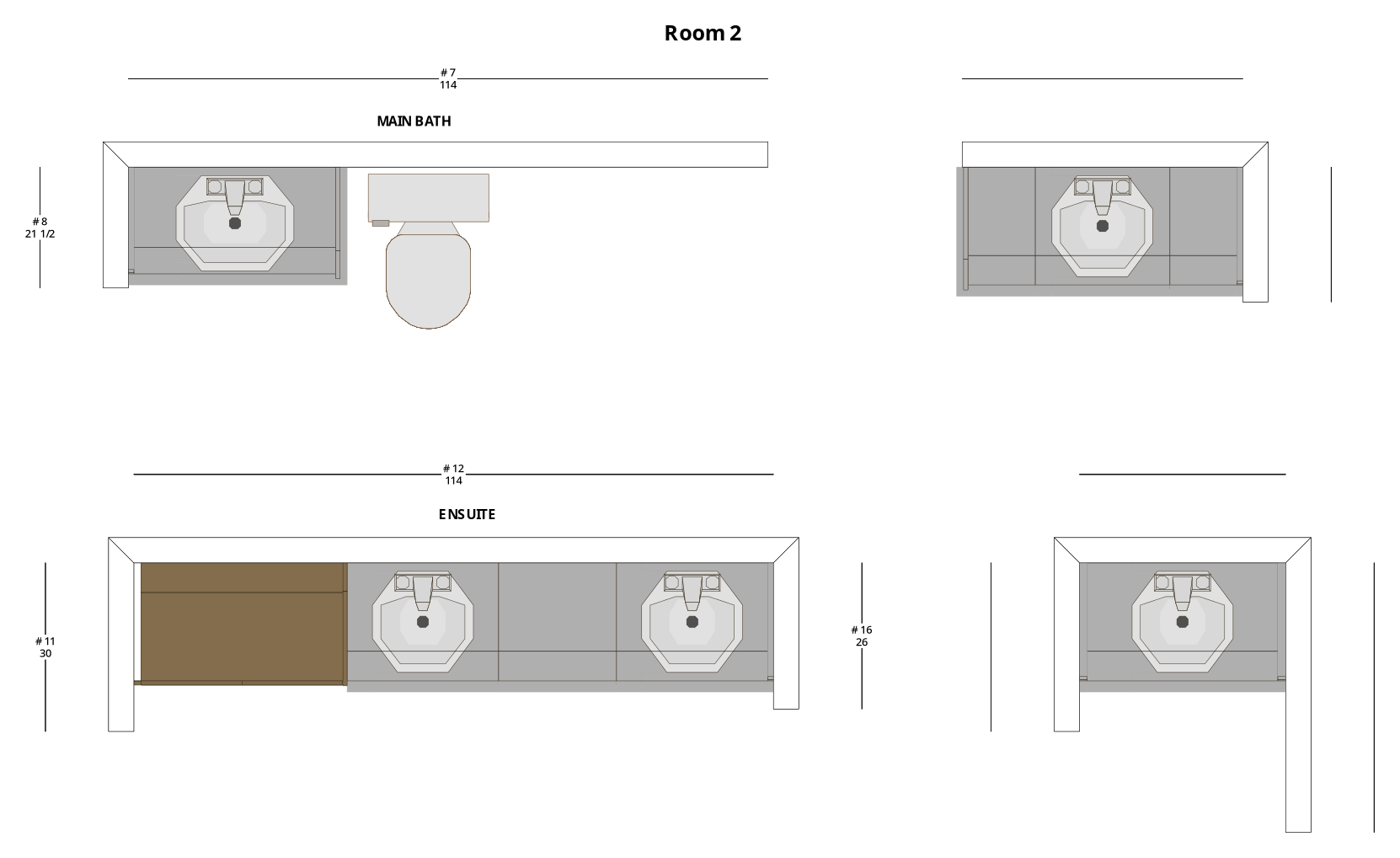

Medium Transitional Bathroom, Closet, and Laundry Cabinet Layout - PDF Drawing Set | 1019-BCL
Bathroom + closet + laundry cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1019-BCL
- Room Type
- Bathroom
- Room Size
- Medium
- Overall Size
- 9.5 ft x 9.5 ft
- Ceiling Height
- 9 ft ceiling
- Room Area
- 90 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 10 pages
- Wall / Elevations
- 8 elevations
- File Type
- Suitable For
- Bathroom + Closet + Laundry renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1019-BCL · 10 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Elevation 6A-205
- Elevation 7A-206
- Elevation 8A-207
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1019-BCL or draw a new set tailored to your build.
