Drawing 1116-AF
Large Modern Minimalist Bar and Fireplace Cabinet Layout - PDF Drawing Set | 1116-AF
Bar + fireplace cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1116-AF
- Room Type
- Bar
- Room Size
- Large
- Overall Size
- 12.4 ft x 12.0 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 149 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 4 pages
- Wall / Elevations
- 3 elevations
- File Type
- Suitable For
- Bar + Fireplace renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1116-AF · 4 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

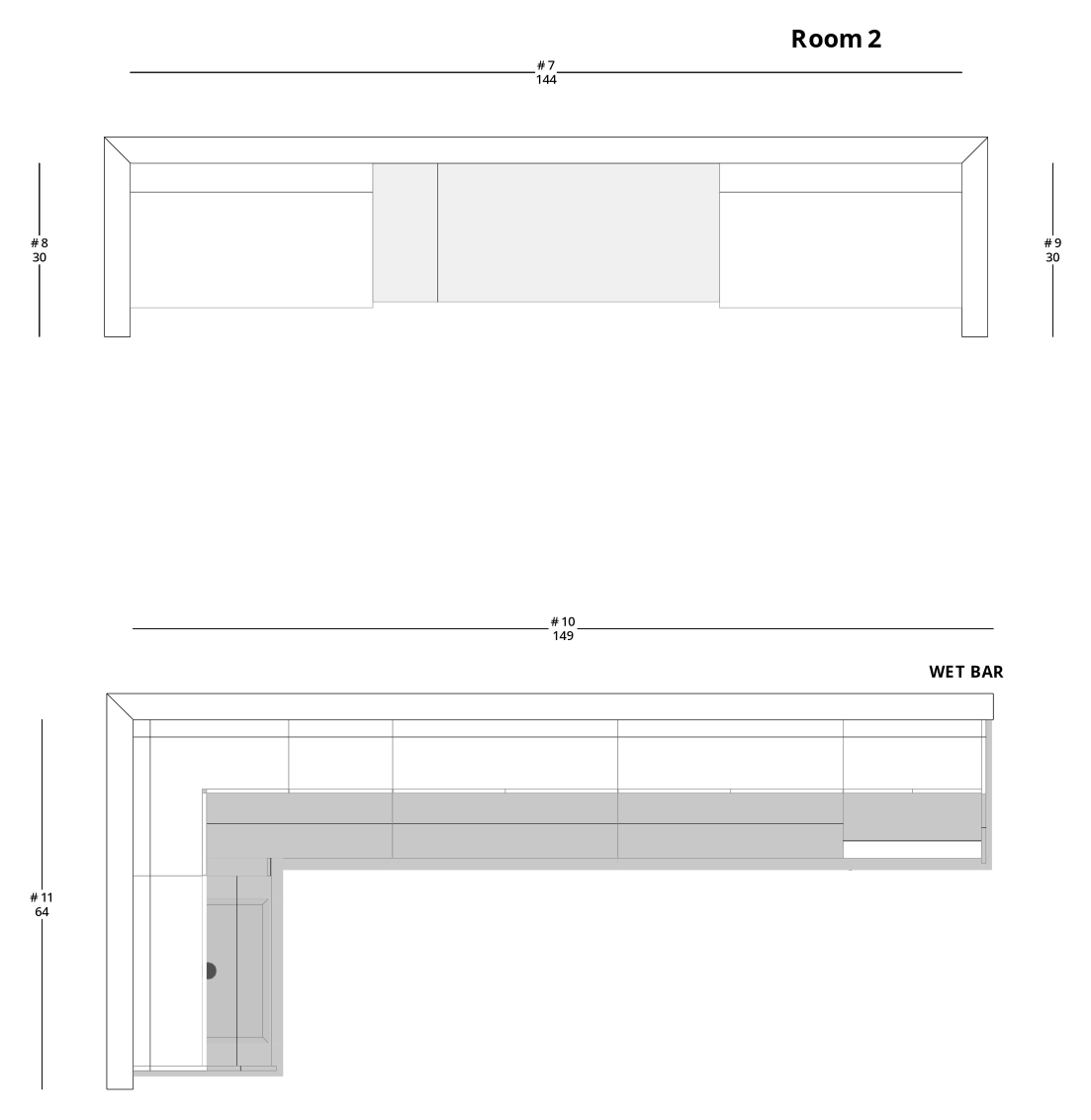

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1116-AF or draw a new set tailored to your build.
