Large Modern Minimalist One-Wall Kitchen Cabinet Layout with Island/Peninsula - PDF Drawing Set | 1095-KII
One-wall / inline kitchen layout with island/peninsula, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.
Drawing Specifications
- Drawing Code
- 1095-KII
- Room Type
- Kitchen
- Room Size
- Large
- Overall Size
- 13.9 ft x 9.2 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 128 sq ft
- Layout
- Island
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 9 pages
- Wall / Elevations
- 7 elevations
- File Type
- Suitable For
- Kitchen renovation, new build, detached home, townhome, condo kitchen planning
Inside the Drawing Set
1095-KII · 9 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

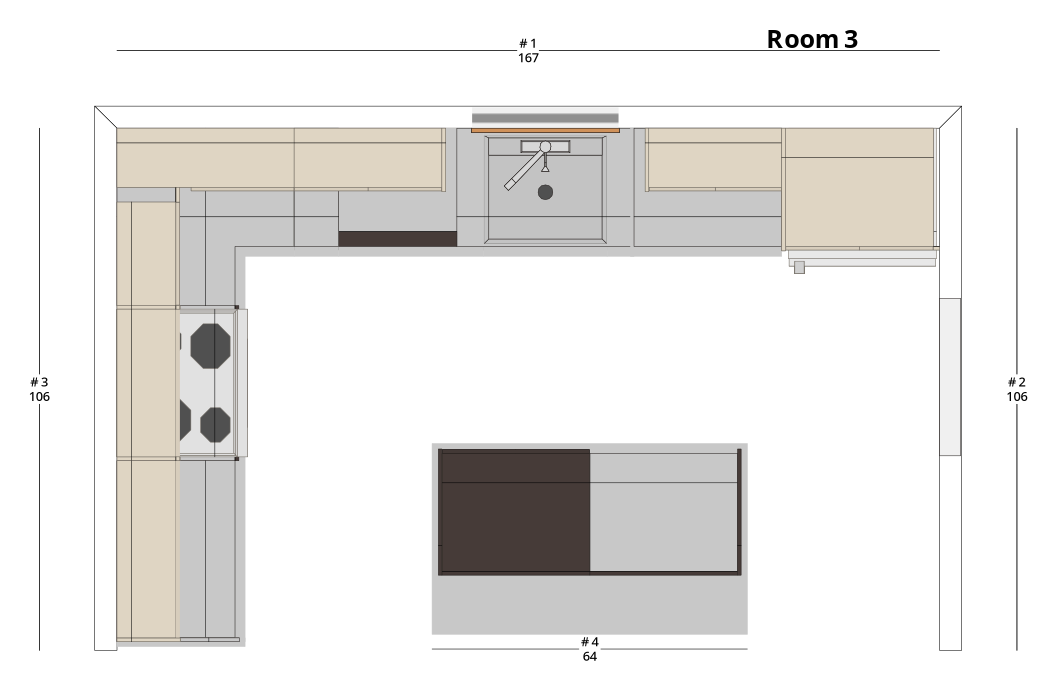

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Elevation 6A-205
- Elevation 7A-206
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1095-KII or draw a new set tailored to your build.
