Drawing 1090-KL

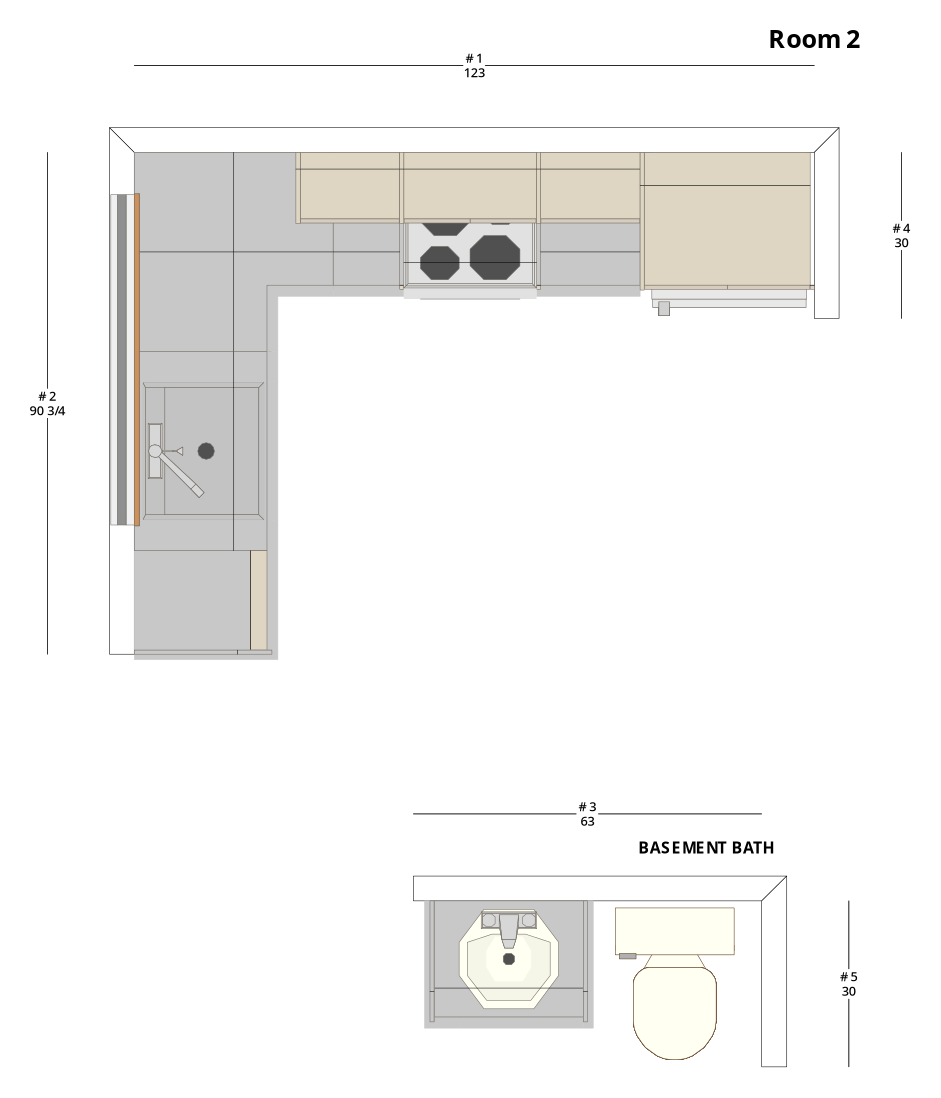

Medium Modern Minimalist L-Shaped Kitchen Cabinet Layout - PDF Drawing Set | 1090-KL

L-shape kitchen layout, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.

Drawing Specifications

Drawing Code: 1090-KL
Room Type: Kitchen
Room Size: Medium
Overall Size: 10.2 ft x 7.6 ft
Ceiling Height: 9 ft ceiling
Room Area: 78 sq ft
Layout: No island / peninsula
Style: Modern / Minimalist
Detail Level: Shop drawing style
Pages: 4 pages
Wall / Elevations: 3 elevations
File Type: PDF
Suitable For: Kitchen renovation, new build, detached home, townhome, condo kitchen planning

Inside the Drawing Set

1090-KL · 4 pages · PDF

Plan, elevations & shop-ready details — drawn at architectural scale.

Need a Custom Drawing?

Tell us your room dimensions and style direction — our team can adapt 1090-KL or draw a new set tailored to your build.
