Drawing 1087-KII

Large Modern Minimalist One-Wall Kitchen Cabinet Layout with Island/Peninsula - PDF Drawing Set | 1087-KII

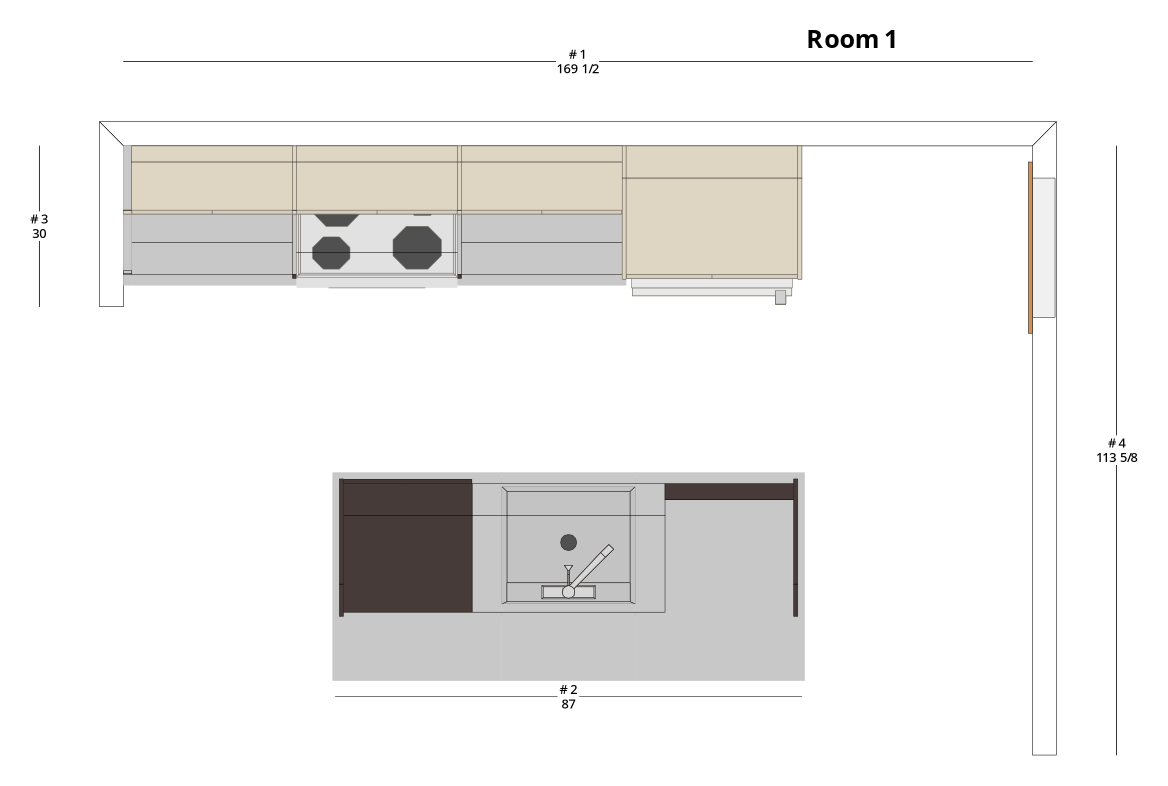

One-wall / inline kitchen layout with island/peninsula, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.

Drawing Specifications

Drawing Code: 1087-KII
Room Type: Kitchen
Room Size: Large
Overall Size: 14.2 ft x 9.5 ft
Ceiling Height: 10 ft ceiling
Room Area: 134 sq ft
Layout: Island
Style: Modern / Minimalist
Detail Level: Shop drawing style
Pages: 4 pages
Wall / Elevations: 3 elevations
File Type: PDF
Suitable For: Kitchen renovation, new build, detached home, townhome, condo kitchen planning

Inside the Drawing Set

1087-KII · 4 pages · PDF

Plan, elevations & shop-ready details — drawn at architectural scale.

Need a Custom Drawing?

Tell us your room dimensions and style direction — our team can adapt 1087-KII or draw a new set tailored to your build.
