Drawing 1084-KU
Medium Transitional U-Shaped Kitchen Cabinet Layout - PDF Drawing Set | 1084-KU
U-shape kitchen layout, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.
Drawing Specifications
- Drawing Code
- 1084-KU
- Room Type
- Kitchen
- Room Size
- Medium
- Overall Size
- 12.3 ft x 9.2 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 114 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 5 pages
- Wall / Elevations
- 4 elevations
- File Type
- Suitable For
- Kitchen renovation, new build, detached home, townhome, condo kitchen planning
Inside the Drawing Set
1084-KU · 5 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

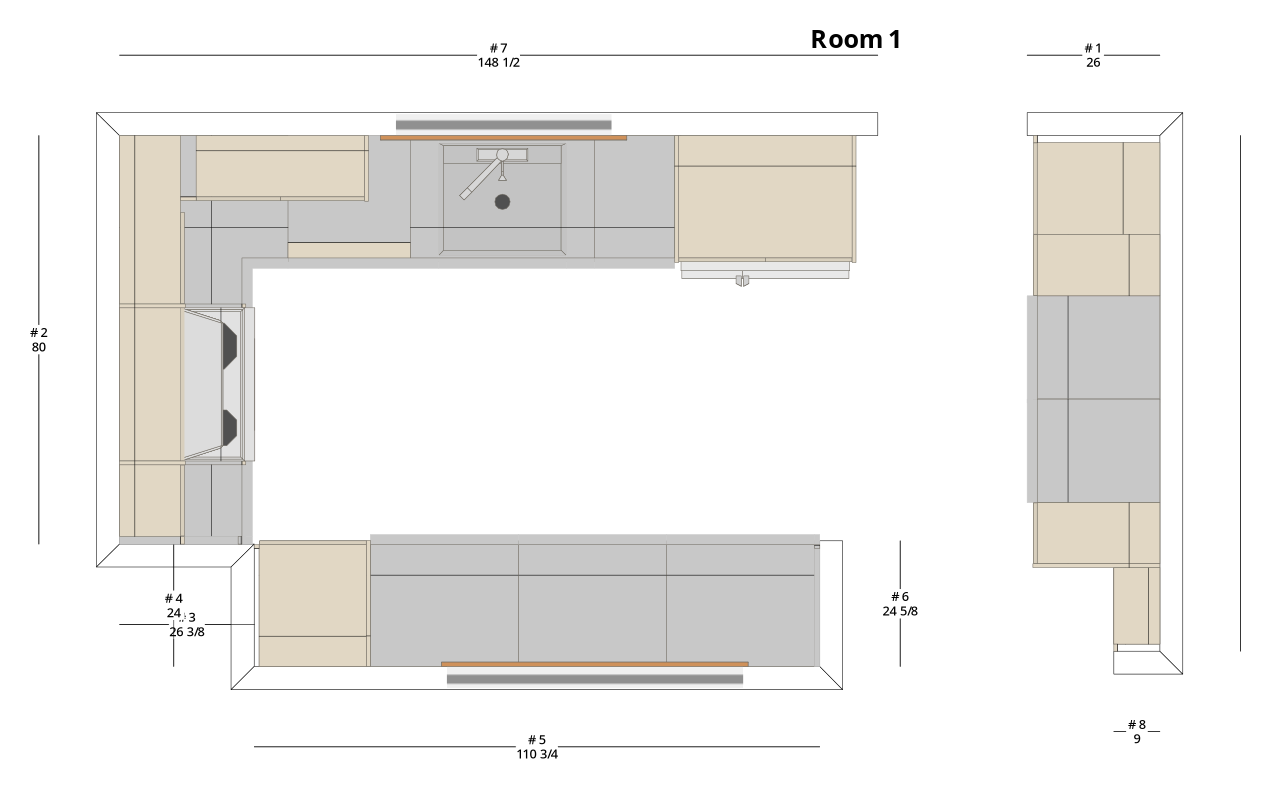

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1084-KU or draw a new set tailored to your build.
