1005-ATBar · Medium
$99
Drawing 1081-ABL
Medium Transitional Bar, Bathroom, and Laundry Cabinet Layout - PDF Drawing Set | 1081-ABL
Bar + bathroom + laundry cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1081-ABL
- Room Type
- Bar
- Room Size
- Medium
- Overall Size
- 12.0 ft x 10.3 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 124 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 11 pages
- Wall / Elevations
- 9 elevations
- File Type
- Suitable For
- Bar + Bathroom + Laundry renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1081-ABL · 11 pages · PDF

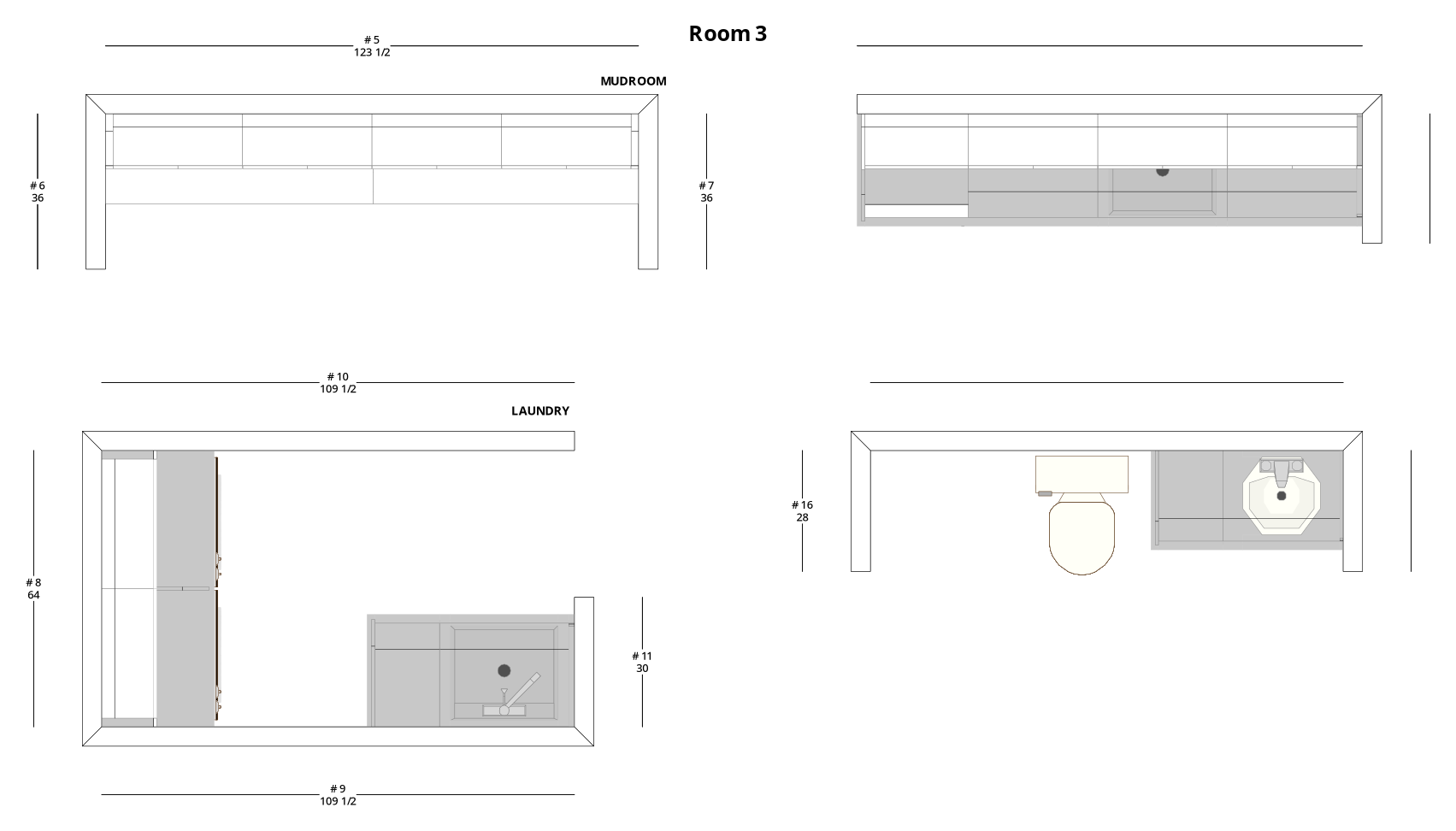

Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Elevation 6A-205
- Elevation 7A-206
- Elevation 8A-207
- Elevation 9A-208
- Specs Cabinet + AccessoriesA-300
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1081-ABL or draw a new set tailored to your build.
Request Custom Drawing →Related Drawings
