Drawing 1080-KG

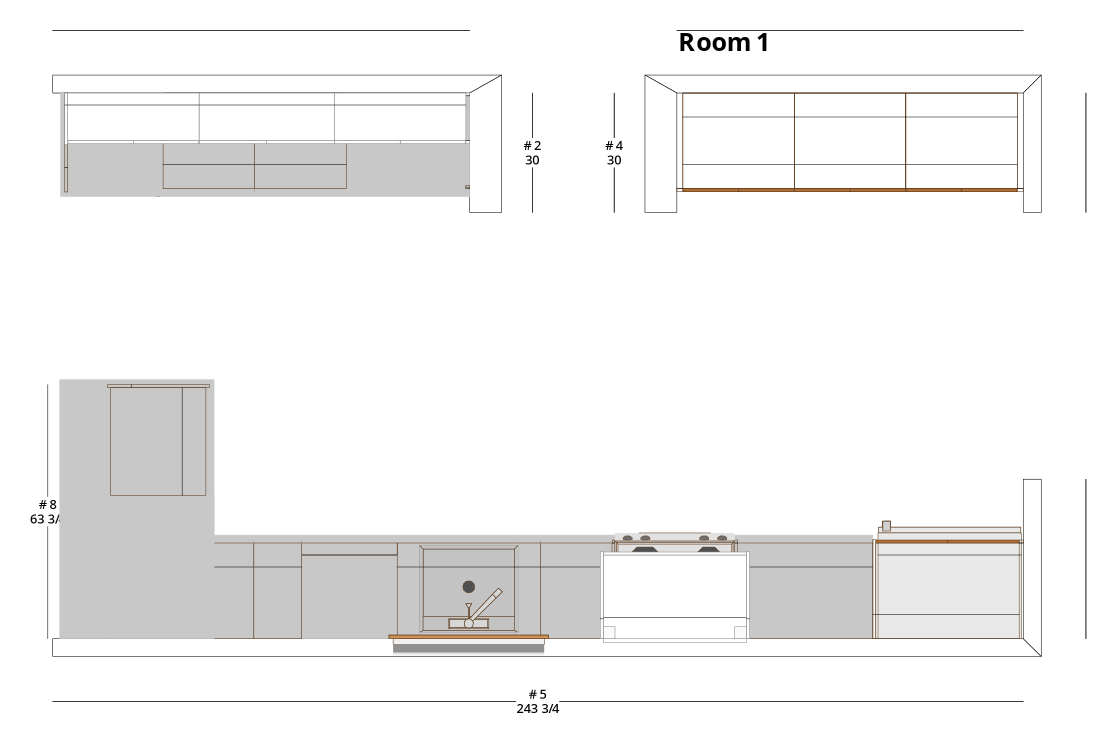

Medium Transitional Galley Kitchen Cabinet Layout - PDF Drawing Set | 1080-KG
Galley kitchen layout, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.
Drawing Specifications
- Drawing Code
- 1080-KG
- Room Type
- Kitchen
- Room Size
- Medium
- Overall Size
- 20.3 ft x 5.3 ft
- Ceiling Height
- 8 ft ceiling
- Room Area
- 108 sq ft
- Layout
- No island / peninsula
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 6 pages
- Wall / Elevations
- 5 elevations
- File Type
- Suitable For
- Kitchen renovation, new build, detached home, townhome, condo kitchen planning
Inside the Drawing Set
1080-KG · 6 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1080-KG or draw a new set tailored to your build.
