Drawing 1057-KUI

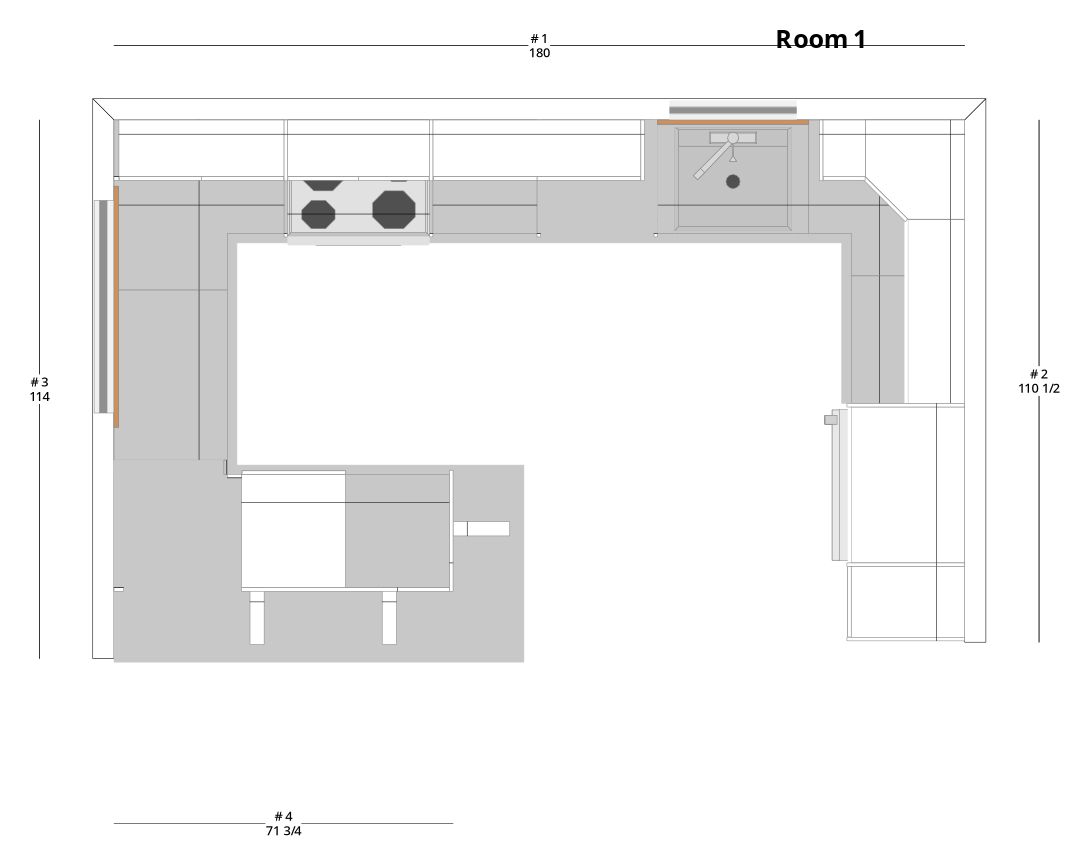

Large Transitional U-Shaped Kitchen Cabinet Layout with Island/Peninsula - PDF Drawing Set | 1057-KUI

U-shape kitchen layout with island/peninsula, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.

Drawing Specifications

Drawing Code: 1057-KUI
Room Type: Kitchen
Room Size: Large
Overall Size: 15.0 ft x 9.5 ft
Ceiling Height: 8 ft ceiling
Room Area: 142 sq ft
Layout: Island
Style: Transitional
Detail Level: Shop drawing style
Pages: 6 pages
Wall / Elevations: 5 elevations
File Type: PDF
Suitable For: Kitchen renovation, new build, detached home, townhome, condo kitchen planning

Inside the Drawing Set

1057-KUI · 6 pages · PDF

Plan, elevations & shop-ready details — drawn at architectural scale.

Need a Custom Drawing?

Tell us your room dimensions and style direction — our team can adapt 1057-KUI or draw a new set tailored to your build.
