Drawing 1055-ABC
Large Modern Minimalist Bar, Bathroom, and Closet Cabinet Layout - PDF Drawing Set | 1055-ABC
Bar + bathroom + closet cabinet layout drawing set with RediiCabi PDF layout pages and shop drawing style details.
Drawing Specifications
- Drawing Code
- 1055-ABC
- Room Type
- Bar
- Room Size
- Large
- Overall Size
- 14.6 ft x 8.8 ft
- Ceiling Height
- 10 ft ceiling
- Room Area
- 128 sq ft
- Layout
- No island / peninsula
- Style
- Modern / Minimalist
- Detail Level
- Shop drawing style
- Pages
- 15 pages
- Wall / Elevations
- 12 elevations
- File Type
- Suitable For
- Bar + Bathroom + Closet renovation, millwork planning, cabinet quote reference
Inside the Drawing Set
1055-ABC · 15 pages · PDF

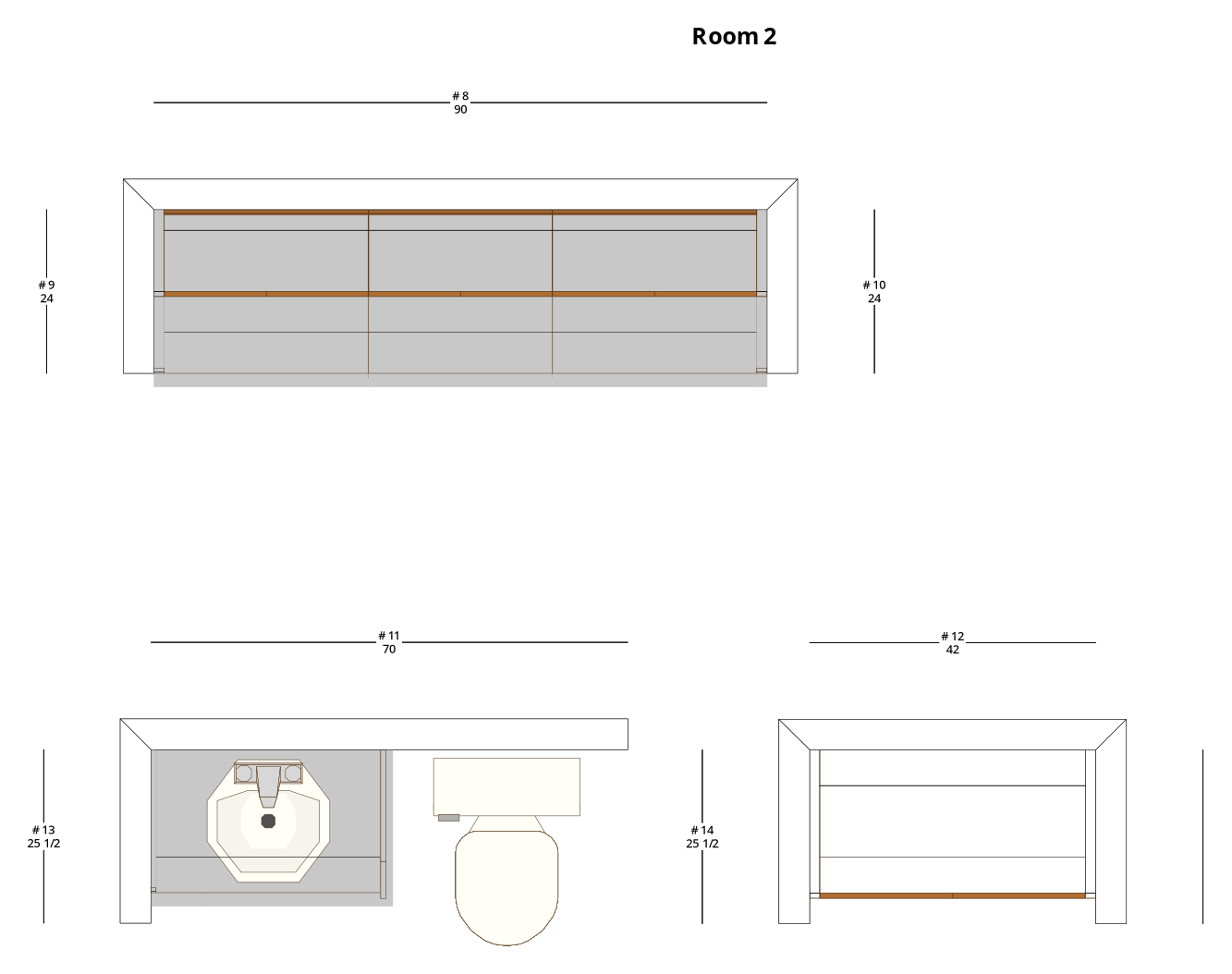

Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
- Elevation 6A-205
- Elevation 7A-206
- Elevation 8A-207
- Elevation 9A-208
- Elevation 10A-209
- Elevation 11A-210
- Elevation 12A-211
- Specs Cabinet + AccessoriesA-300
- Appliances SpecsA-400
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1055-ABC or draw a new set tailored to your build.
