Drawing 1054-KG

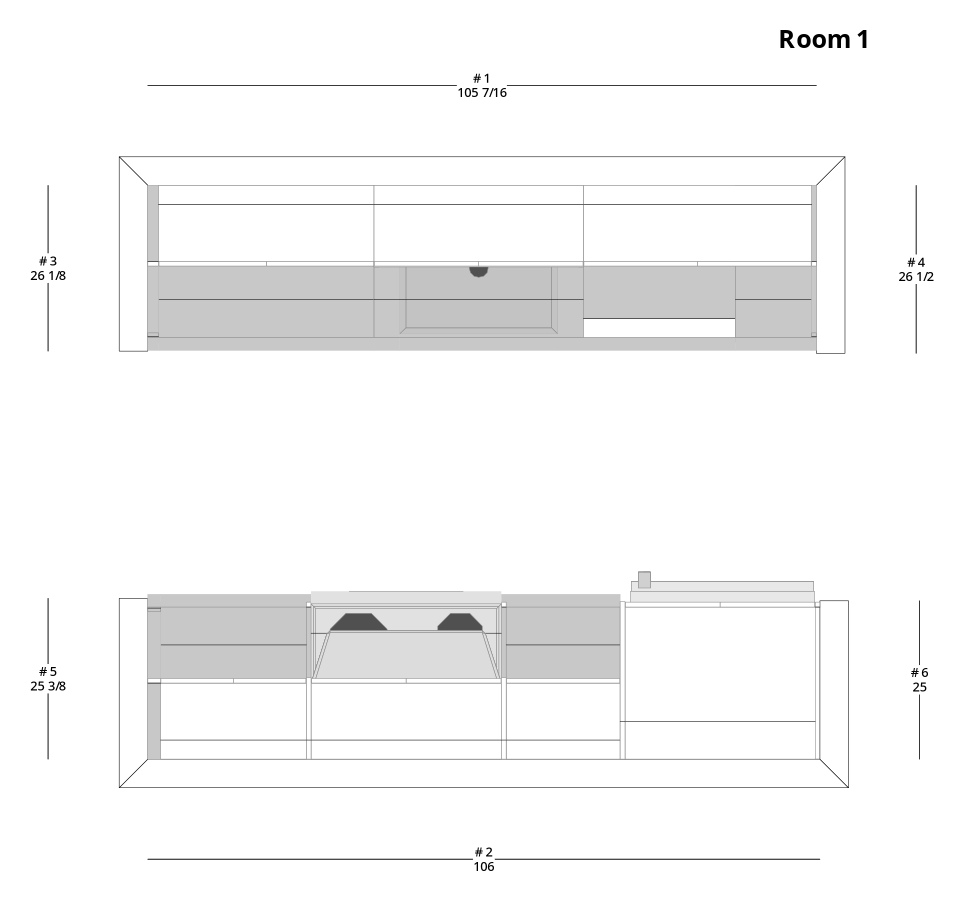

Medium Traditional Galley Kitchen Cabinet Layout - PDF Drawing Set | 1054-KG
Galley kitchen layout, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.
Drawing Specifications
- Drawing Code
- 1054-KG
- Room Type
- Kitchen
- Room Size
- Medium
- Overall Size
- 8.8 ft x 8.8 ft
- Ceiling Height
- Review
- Room Area
- 77 sq ft
- Layout
- No island / peninsula
- Style
- Traditional
- Detail Level
- Shop drawing style
- Pages
- 3 pages
- Wall / Elevations
- 2 elevations
- File Type
- Suitable For
- Kitchen renovation, new build, detached home, townhome, condo kitchen planning
Inside the Drawing Set
1054-KG · 3 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.
- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Specs Cabinet + AccessoriesA-300
- Appliances SpecsA-400
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1054-KG or draw a new set tailored to your build.
