Drawing 1016-KUI
Large Transitional U-Shaped Kitchen Cabinet Layout with Island/Peninsula - PDF Drawing Set | 1016-KUI
U-shape kitchen layout with island/peninsula, including RediiCabi PDF layout pages and shop drawing style cabinet/elevation details.
Drawing Specifications
- Drawing Code
- 1016-KUI
- Room Type
- Kitchen
- Room Size
- Large
- Overall Size
- 14.2 ft x 14.0 ft
- Ceiling Height
- 9 ft ceiling
- Room Area
- 199 sq ft
- Layout
- Island
- Style
- Transitional
- Detail Level
- Shop drawing style
- Pages
- 6 pages
- Wall / Elevations
- 5 elevations
- File Type
- Suitable For
- Kitchen renovation, new build, detached home, townhome, condo kitchen planning
Inside the Drawing Set
1016-KUI · 6 pages · PDF
Plan, elevations & shop-ready details — drawn at architectural scale.

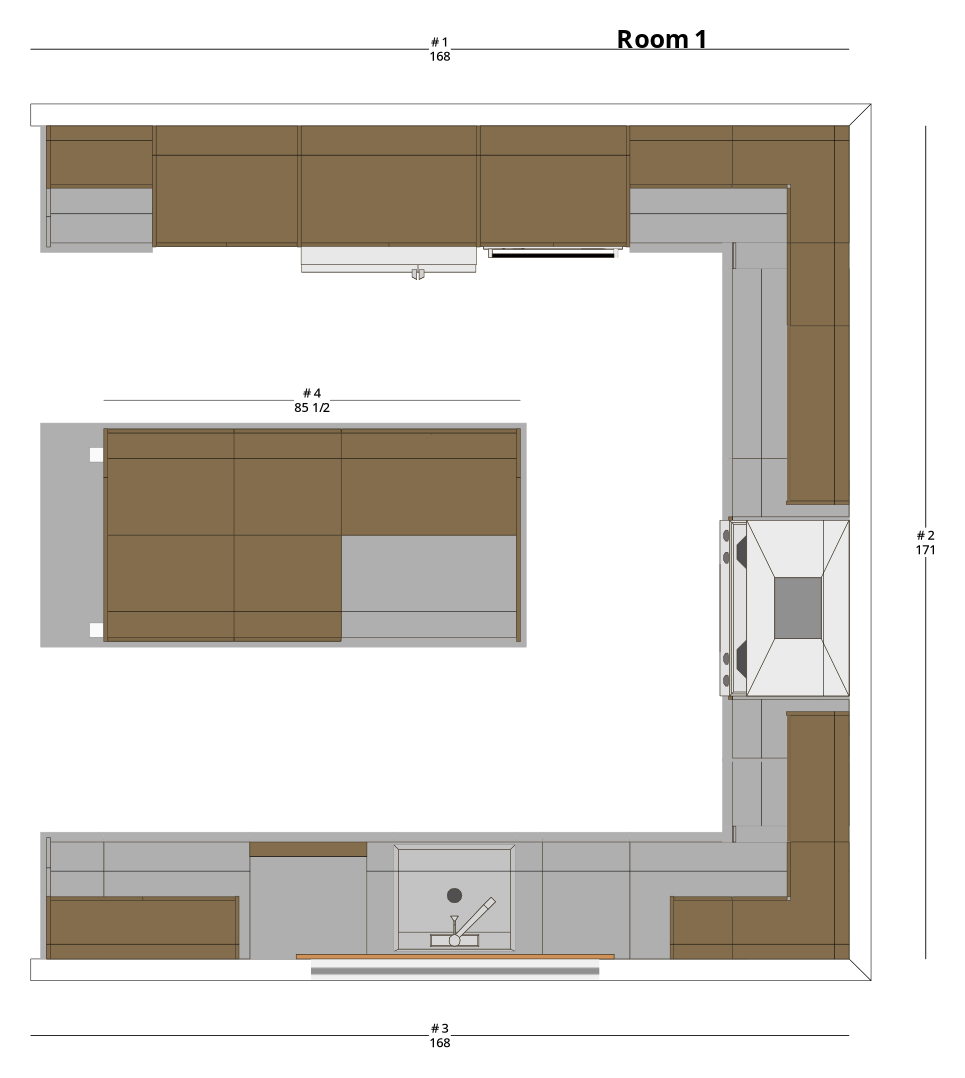

- Plan ViewA-100
- Elevation 1A-200
- Elevation 2A-201
- Elevation 3A-202
- Elevation 4A-203
- Elevation 5A-204
Need a Custom Drawing?
Tell us your room dimensions and style direction — our team can adapt 1016-KUI or draw a new set tailored to your build.
